拟烟粒子 Particles#

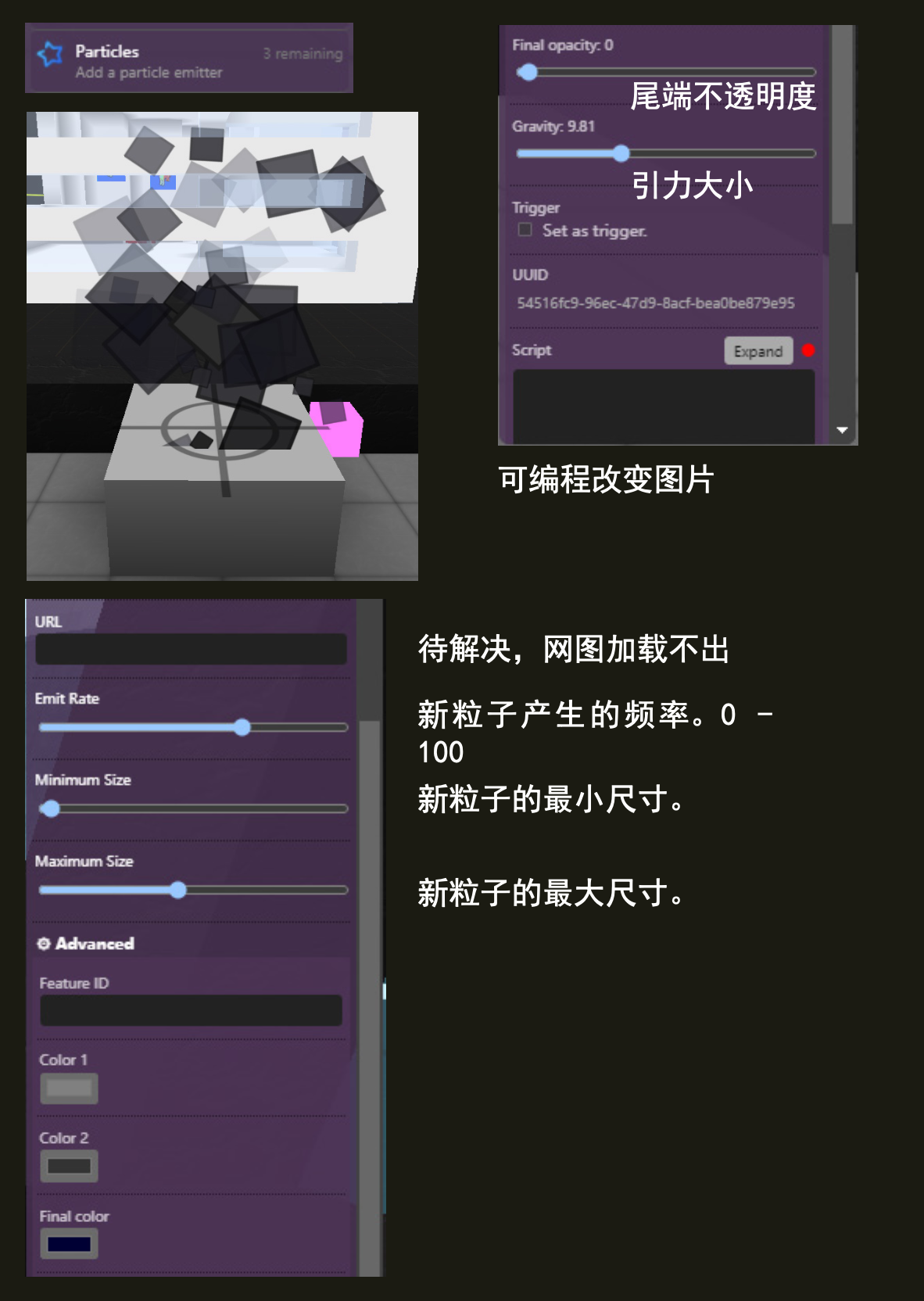

Editor 编辑器#


Emit rate 发射率#

新粒子产生的频率。 0 - 100

Minimum size 最小尺寸#

新粒子的最小尺寸。

Maximum size 最大尺寸#

新粒子的最大尺寸。

URL#

自定义粒子图像的URL；如果未提供，则将使用默认粒子图像（灰色方块）。

备注

示例链接 https://www.voxels.com/images/newlogo.png

Color 1 and Color 2 颜色1和颜色2#

新粒子的初始颜色取决于这些参数的值 - 颜色将位于两个给定颜色之间的范围内。

脚本属性#

String; Links must be https:// and must finish with an extension such as .jpg/.gif/.png.

If you set an URL, the custom colors color1 and color2 will be ignored. {.is-info}

get()

feature.get('url')
// returns: "https://..."

set()

feature.set({'url':"https://www.myurl.com/file.png"})

default

""

Double; Must be a number between 0 and 100.

get()

feature.get('emitRate')
// returns: 50.0

set()

feature.set({'emitRate':52})

default

50

Double; Must be a number between 0 and 1.

get()

feature.get('minSize')
// returns: 0.5

set()

feature.set({'minSize':0.5})

default

0.5

Double; Must be a number between 0 and 1.

get()

feature.get('maxSize')
// returns: 0.5

set()

feature.set({'maxSize':0.5})

default

0.5

String - hexadecimal;

get()

feature.get('color1')
// returns: "#4cb844"

set()

feature.set({'color1':"#4cb844"})

default

#000000

String - hexadecimal;

get()

feature.get('color2')
// returns: "#4cb888"

set()

feature.set({'color2':"#4cb844"})

default

"#000000"

String;

get()

feature.get('type')
/* or */
feature.type

// returns: 'particles'

Deprecations#

for information on versioning click here

5.7.0#

The particle feature can now be rotated in the X-axis instead of being hard-coded to 90 deegres. This means that the next time a particle system is edited, it will use the X-axis rotation set by the owner which most likey look weird, but can be easily corrected at that time.
